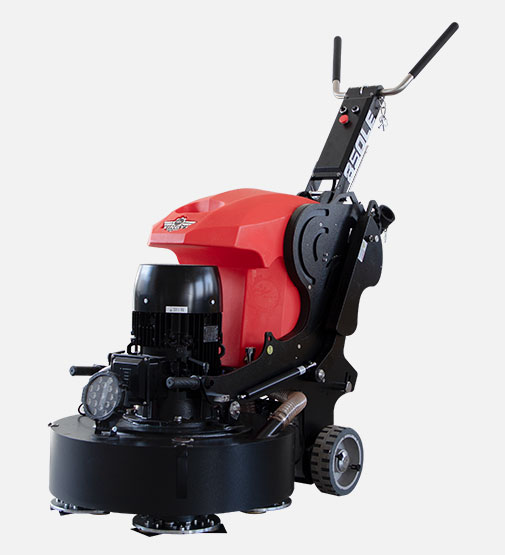

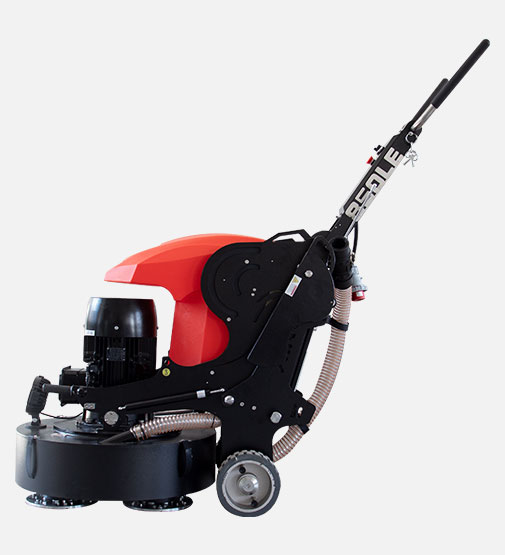

XY 850LE
REMOTE CONTROL GRINDING MACHINE
XY-850LE remote control grinder is introduced to the market in September, 2020 and quickly receives the title of “RC Slab King “thanks to its excellent cutting and polishing performance.
With a grinding width of 820 mm, it’s the second largest and most powerful remote-controlled floor grinder in the Xingyi Range. The remote control sets the operator free to manage hoses and cables while still grinding, for up to 40% higher productivity. With our patented gear-drive gearbox design, this is a powerful choice for most grinding jobs, both industrial and commercial. The planetary 4-head system delivers extreme productivity. Suitable for all applications: floor prep, grinding and polishing.
Responsive wireless remote control, always in control; Consistent optimum grinding performance; Flexible turning, drive like car, the wheels support two-wheel and one-wheel turning, in same direction or counter-direction. This is especially helpful for narrow spaces, sharp turns and do not miss polishing. Swing weights, allow to adjust the grinding pressure in three pre-sets. 39L water tank, wet and dry option.
|
Technical Spec. |
XY 850LE |
|
Working width: |
820mm / 32.2in |
|
Motor Power: |
220V / 380V 3phases 50/60hz 15KW/20HP |
|
rotating speed: |
450 - 1950rpm Φ278mm * 4or3 heads |
|
Operation: |
Remote control and handle control |
|
Water Tank: |
39L |
|
Weight: |
600kg / 1323lbs |
|
Packing size： |
1580*880*1320mm |
|
Acceptable tools: |
Standard magnetic holder Customized design accepted |
|
Package with: |
Cable and adaptor Standard maintenance tools box resin pad holder x 12 pieces |
Diamond tools please check here.
Dust Collector please check here.
Send inquiry
