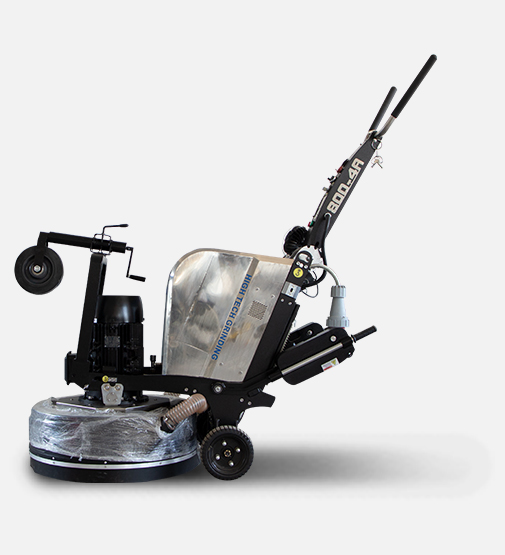

HTG-800 4A
self-propelled planetary grinding machine
Is a king of self propelled grinder with 800mm/32inch large grinding width,suitable for everything from coating removal and prep to high gloss polishing on large industrial and commercial jobs.
With HIGH TECH GRINDING Patent Planetary Rotating System and drive control system, he gets many happy feedback from 2014 year.
GRINDER FEATURES
1. With the drive battery, the machine runs forward and reverse automatically, humans only need to control the direction. Release hands, and reduce working fatigue.
2. The drive wheel provides speed cruise for even grinding and polishing, generating a nice floor finish.

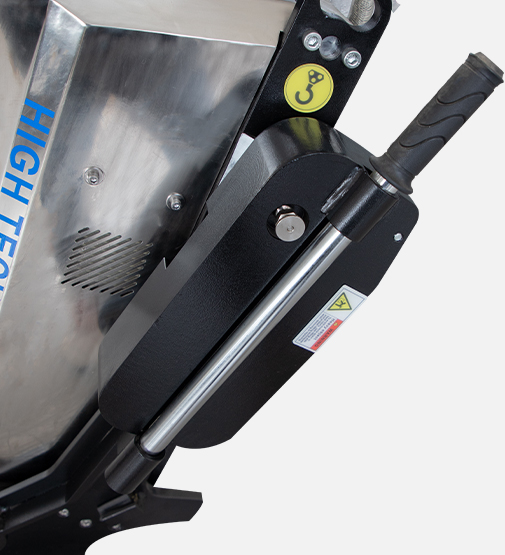

3. Easy-to-use extra weights with 3 positions. With the weights forward position, you increase the grinding head pressure and grind more aggressively. With the weights rear position you decrease the grinding pressure and easy to tipping the machine for change tools.
4. With front support wheel and Rechargeable battery to transport even when disconnected to voltage, greatly helped transportation.
5. 25-degree ramp grinding no more headache.
6. Big water tank for wet grinding.
7. Floating dust shroud to seal dust and reduce fastening time when you change abrasives.

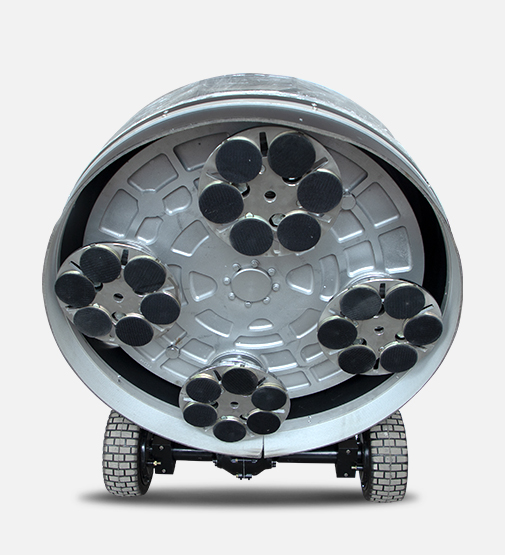

8. Multi-functional grinding plates for various types of pads use.
9.LED lights helps monitoring the floor.
10.Charging phone with the USB port .
All of these unique advantages make the HTG-800-4A one of the most fastest and most efficient grinding machine on the market.
Recommended vacuum cleaner is IVC-45L OR IVC-55A
Product: |
HTG-800-4A |
Working width: |
800mm |
Motor Power: |
15KW / 20HP 220V / 380V 3phase |
Working speed: |
350-1950rpm Φ256mm x 4heads |
Operation: |
Self-propelled driving system |
Water tank |
20L |
Weight: |
540kg |
Packing size: |
146*87*132cm |
Acceptable tools: |
Standard HTG tools plate Customized is available |
Package with: |
Maintenance bag |
