Why it is IVC 33L

HOME » HIGH-TECH-GRINDING » Dust Collector

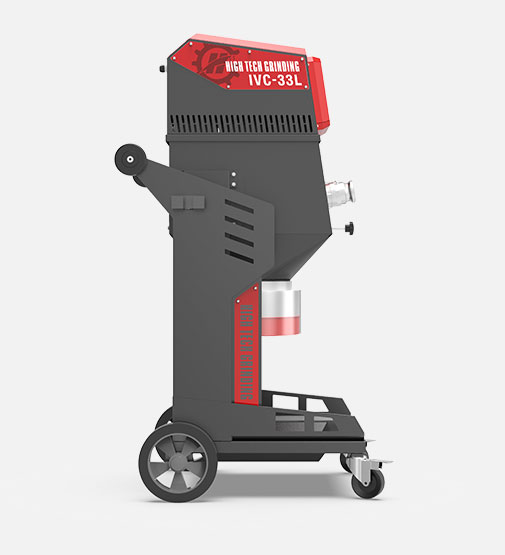

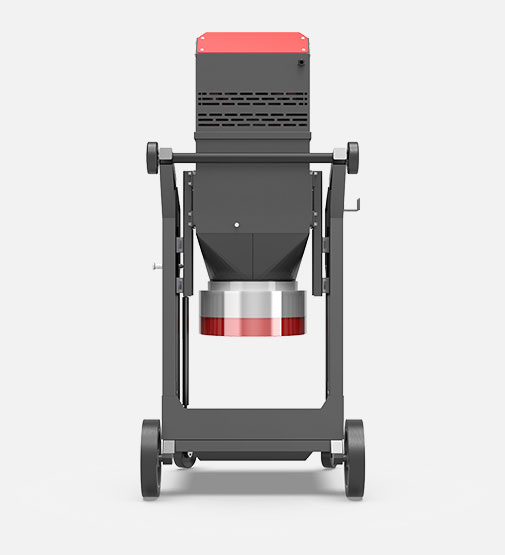

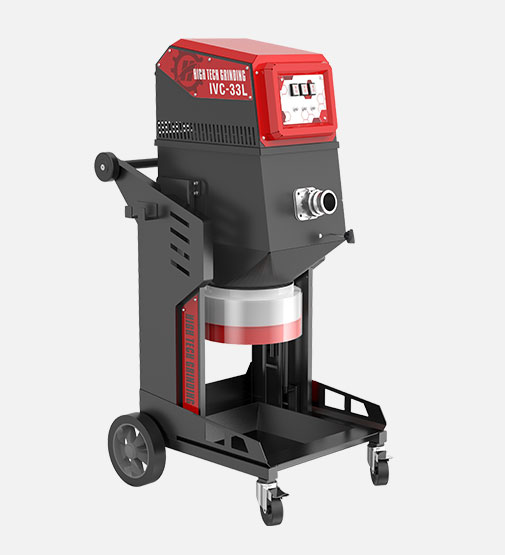

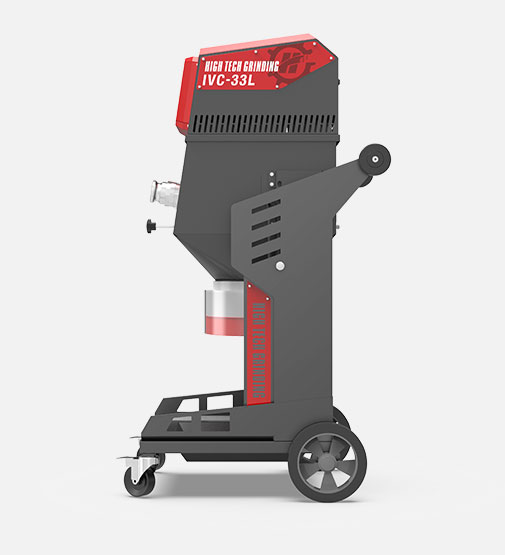

IVC 33L


A Portable 220v single phase high-efficiency industrial vacuum cleaner With Liftable design, dust cleaning system won the invention patent.


VACUUM FEATURES

1.   Efficient reciprocating dust vibration system.

2.   Ultra-high service life, the market life is more than 5 years.Widened and thickened carbon brushes extend the service life of the motor.

3.   The standard H-grade filter replaces the traditional polyester bag filter with a large filtering area and can effectively filter 99.9% of 0.3μm dust particles

4.   Equipped with PTFE lamination filter element.With the help of the filter is PTFE (poly tetra fluoro ethylene) coating, the dust on the main filter can be removed more easily and quickly. Provides better air flow through the filter for better dust removal.

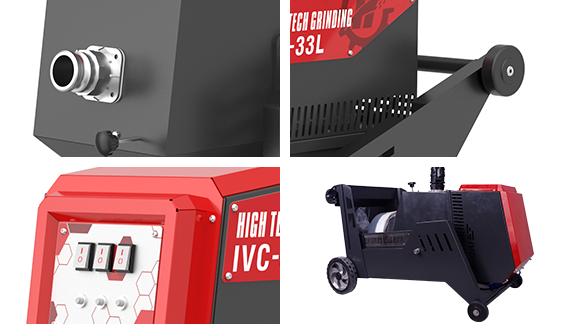

5.   Liftable barrel design, with the up and down upgrade function, the built-in gas spring can easily operate the vacuum cleaner up and down (30cm lifting space). Save transportation space

6.   Innovative lie upside down for transportation,the rack can be transported lie upside down, which is convenient for one person to load the car.

7.   With large non-marking 8-inch wheels, you can easily cross obstacles and stairs.

8.   Equipped with continuous dust bag,provides a fast, dust-free bagging solution


Product

IVC-33L

Motor(KW)

3.3

Rated voltage(V)

220/110 (1P)

Rated current(A)

13.3/26.25

Input frequency

50HZ/60HZ

Maximum suction(Kpa)

20

Air Flow Rate()

537

CFM

316

Filter cleaning

Jet pulse

Filter rating

3-5μm/99%(H13)

Weight(kg)

105

Noise(dB)

80

Vacuum hose

50mm

Size:Length x Width x Height(mm)

790*711*1258

Downsize:Length x Width x Height(mm)

790*711*1228


  Diamond tools please check here.

  Dust Collector please check here.
